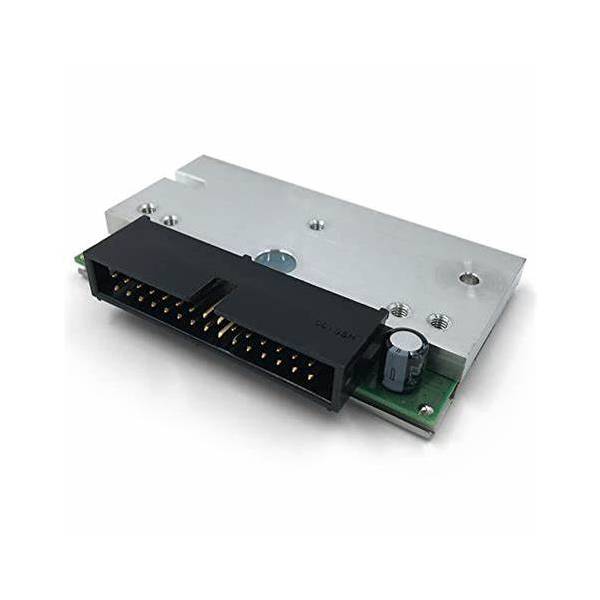

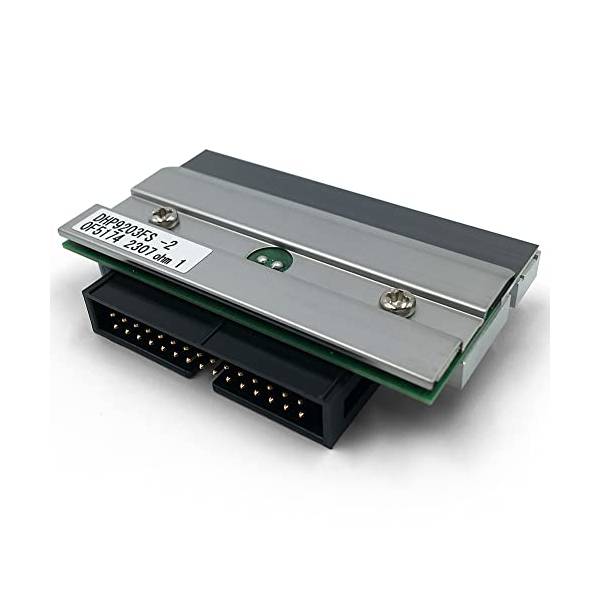

Toshiba Hokuto thermal printhead DHP9203FS for Avery Dennison SNAP 500

1/

Feature

Thermal printhead with straight path structure can print on thick media, such as thick tickets and electronic tags . Moreover, it provides high-speed and high-quality printing by history control IC.

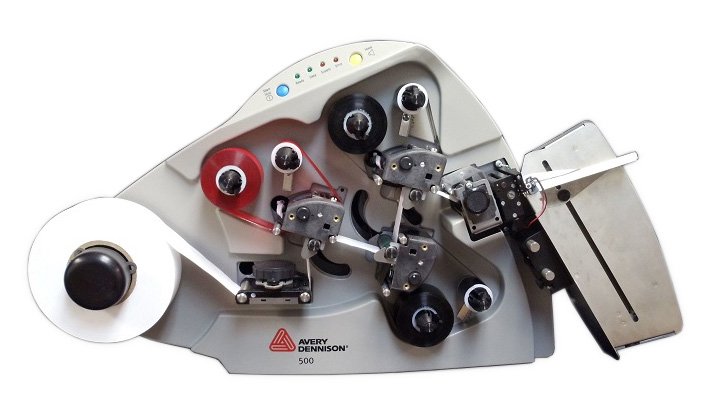

Applicable to: Avery Dennison Snap 500 label printer

Application

• High speed label printer
• High speed ticket printer
• High speed tag printer

Parameter

• Print Width: 58.67mm
• Resolution: 24dots/mm(609dots/inch)
• Heat Element Pitch: 0.0833mm
• Number of Heat Elements: 1408dots
• Heat Element Size: 0.032mm(W) x 0.07mm(L)
• Glaze Shape: partial glaze
• Platen Roller Diameter: ∅20mm(Max.)
• Logic Power Supply: 5V

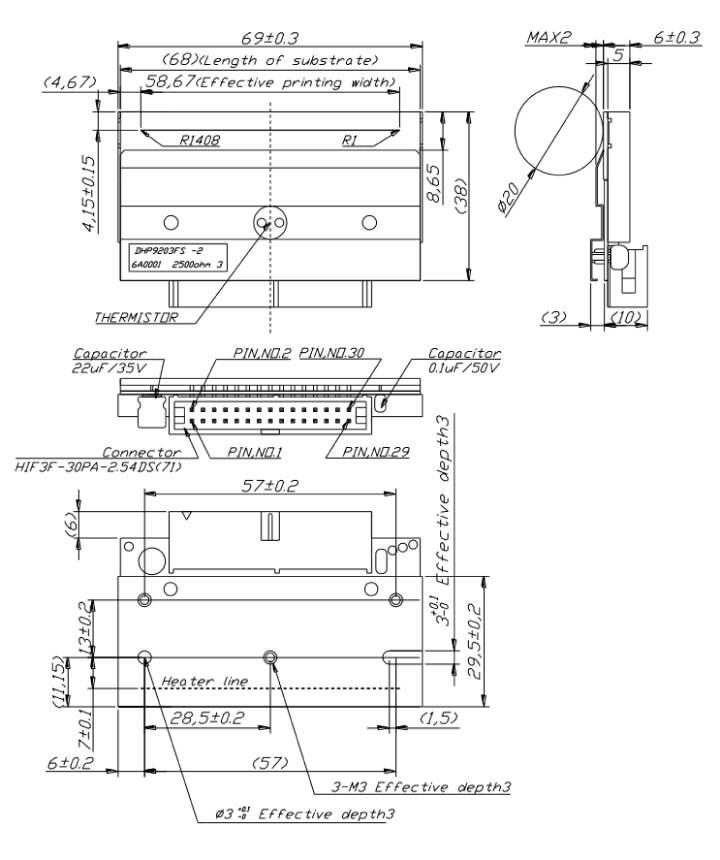

Dimension
