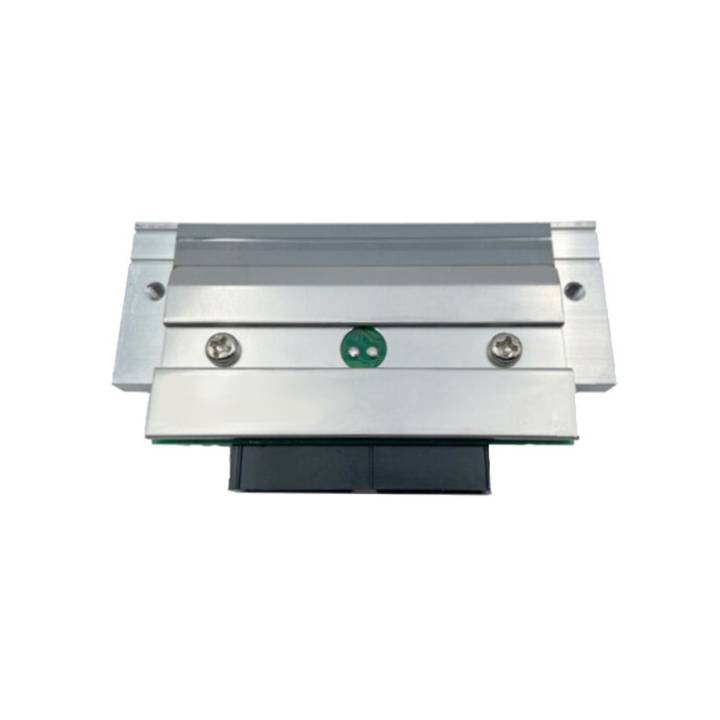

Toshiba Hokuto thermal printhead BHP6212FS for Avery Dennison SNAP 500

1/

Feature

Thermal printhead with straight path structure can print on thick media, such as thick tickets and electronic tags . Moreover, it provides high-speed and high-quality printing by history control IC.

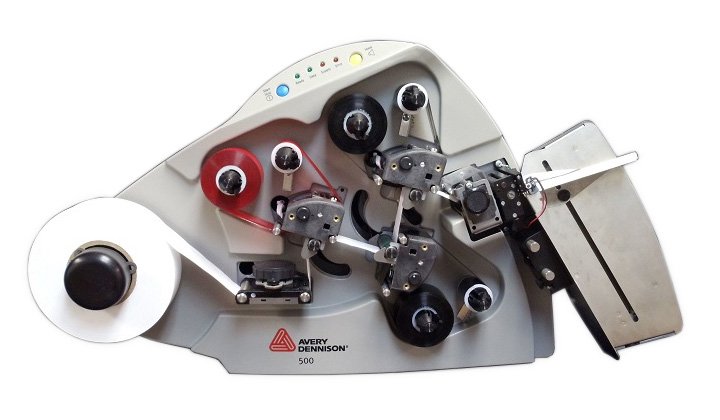

Applicable to: Avery Dennison Snap 500 label printer

Application

• High speed label printer
• High speed ticket printer
• High speed tag printer

Parameter

• Print Width: 53.33mm
• Resolution: 12dots/mm(305dots/inch)
• Heat Element Pitch: 0.0833mm
• Number of Heat Elements: 640dots
• Heat Element Size: 0.07mm(W) x 0.1mm(L)
• Glaze Shape: partial glaze
• Platen Roller Diameter: ∅20mm(Max.)
• Logic Power Supply: 5V

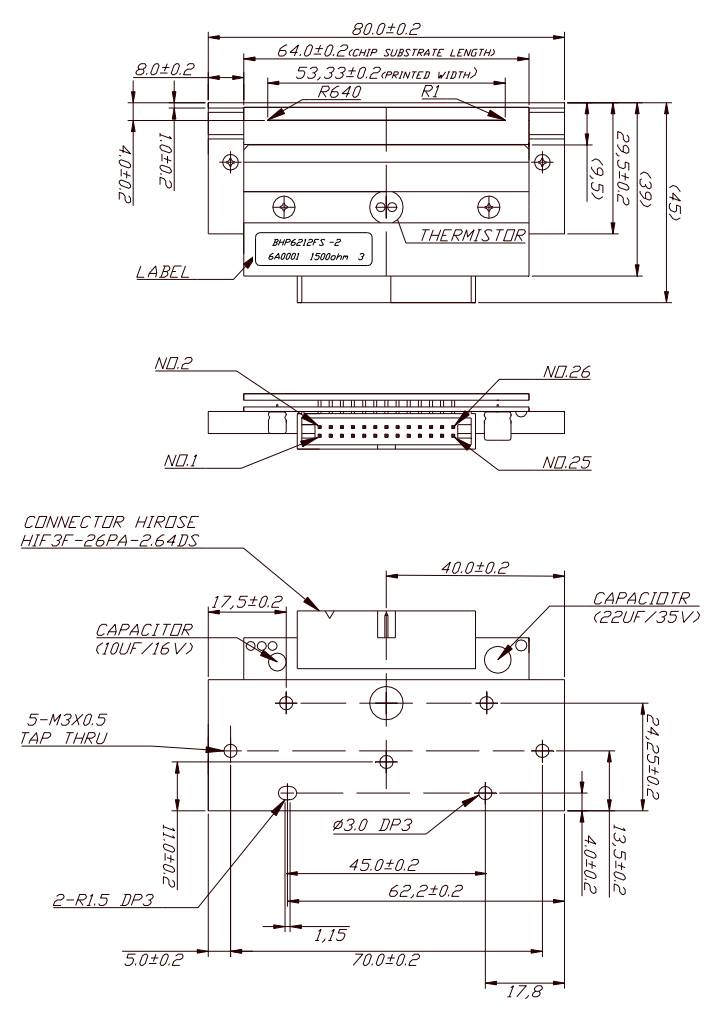

Dimension
