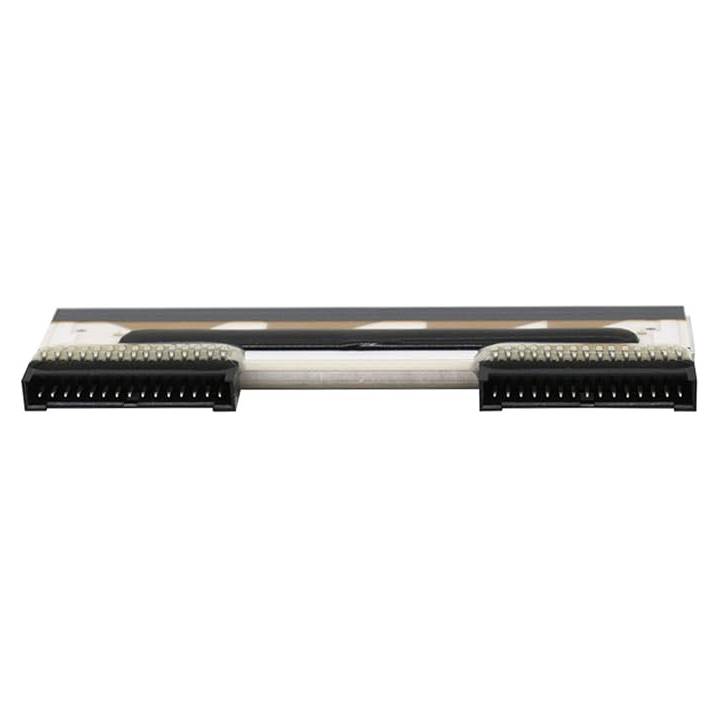

Rohm thermal printhead KD3002-DF10F
1/
Features
By adopting a unique heating element structure that supports high-speed printing, clear print quality can be obtained even at high-speed printing. This series achieves high-quality printing on various media.
Applications
Ideal for Smart POS printers that support high-speed printing, ECR printers, and small label printers such as cardboard labels.

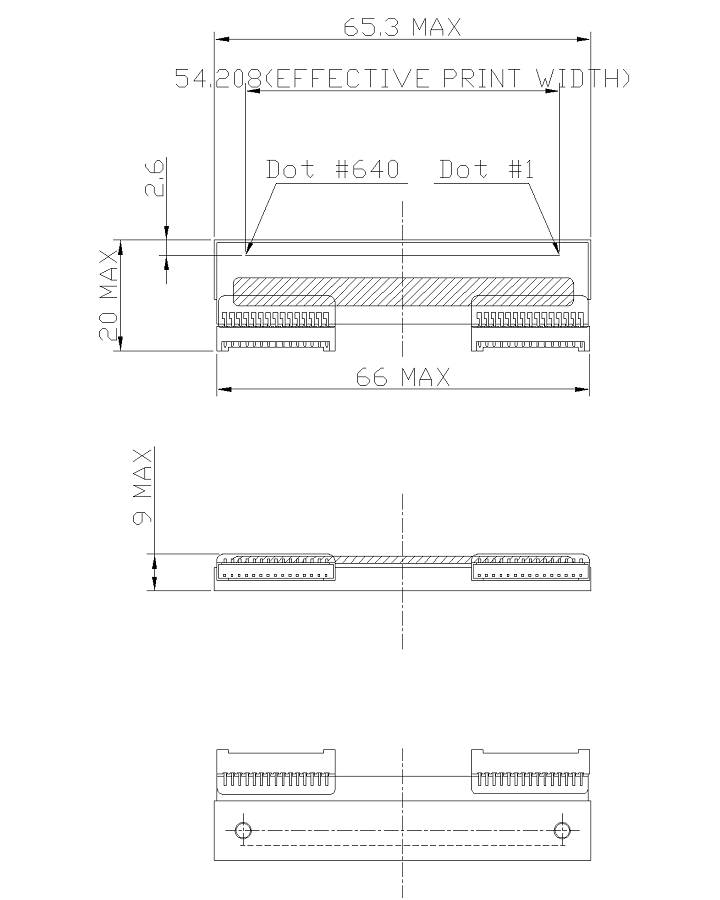

Dimensions (Unit : mm)
Specifications
| Print width[mm] | 54.2 |
| Resolutions[dpi] | 300 |
| Resistance variation[Ω] | 1000.0 |
| Logic voltage[V] | 3.13 to 5.25 |
| Number of dot[dots] | 640 |
| Resistance tolerance[%] | ±3 |
| Platen diameter(Max.)[mm] | 18.0 |
| Print speed[mm/s] | 100 to 200 |
| Supply voltage[V] | 24 |
| Connector type | Cable |
| Heat sink | Yes |
| Abrasion life[km] | 100 |
| Pulse life[million pulses] | 100 |
